Product Description:

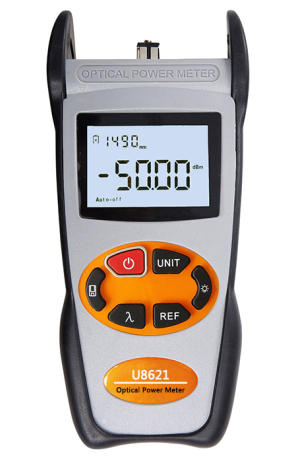

The Optic Fiber Tester is a state-of-the-art handheld optical power meter designed to deliver precise and reliable measurements for a wide range of fiber optic applications. With its exceptional linearity of 0.03 dB, this optical power meter ensures high accuracy and consistency, making it an indispensable tool for professionals working in telecommunications, data centers, and network maintenance. Its superior performance allows users to confidently assess the power levels of optical signals, facilitating efficient troubleshooting and optimal network performance.
One of the standout features of this handheld optical power meter is its detector area, which measures 0.3mm, with an option for a larger 1.0mm detector area to accommodate different measurement needs. This flexibility ensures compatibility with various fiber types and connector sizes, enabling precise power detection across diverse scenarios. The detector uses an InGaAs (Indium Gallium Arsenide) probe type, known for its high sensitivity and excellent responsiveness in the near-infrared spectrum commonly used in fiber optic communications.
The power measurement range of the Optic Fiber Tester is impressively broad, spanning from -70 dBm to +6 dBm for one configuration, and from -50 dBm to +26 dBm for another. This extensive range allows the device to accurately measure both very low and relatively high optical power levels, making it highly versatile for different testing environments. Whether verifying weak signals in long-haul fiber links or checking stronger signals in shorter connections, this optical power meter delivers reliable readings with ease.
| Calibration Wavelength(nm) |
850/1300/1310/1490/1550/1625 |
| Detector type |
InGaAs |
| Measurement Range(dBm) |
Type A:-70～+6 |
Type C:-50～+26 |
| Uncertainty (dB) |
±0.15(3.5%) |
| Display resolution(dB) |
0.01 |
| Frequency ID(Hz) |
270,1K,2K |
| Date Storage Capacity |
1000 |
| Communication Port |
USB |
| Standard Connector |
FC/PC or FC,SC interchangeable |
| Alkaline battery |
3*AA,1.5V |
| Power Adapter(V) |
8.4 |
| Battery Operating time (h) |
200 without backlight |
| Operation Temperature(℃) |
-10～+60 |
| Storage Temperature(℃) |
-25～+70 |
| Dimension(mm) |
200*90*50 |
| Weight(g) |
285 |
Applications:
The YOUCii UC8621 Optical Fiber Tester, originating from CHINA, is an essential tool designed for a wide range of application occasions and scenarios in the field of fiber optic communication. As a high-speed optical power meter, it is ideal for technicians and engineers who require precise and rapid measurements in environments such as telecommunications networks, data centers, and cable TV installations. The calibrated wavelengths of 850, 1300, 1310, 1490, 1550, and 1625 nm make the UC8621 versatile for testing various types of fiber optic cables and systems, ensuring compatibility with multiple communication standards.
Additionally, the handheld optical power meter’s ergonomic design and user-friendly interface facilitate quick setup and measurement, making it suitable for both beginners and experienced professionals. It is widely used in fiber optic network construction, maintenance, and upgrade projects, as well as in educational and research institutions focusing on optical communication technologies. Overall, the YOUCii UC8621 Optical Fiber Tester is a reliable, precise, and versatile instrument tailored for a variety of demanding application occasions and scenarios in the fiber optics industry.
